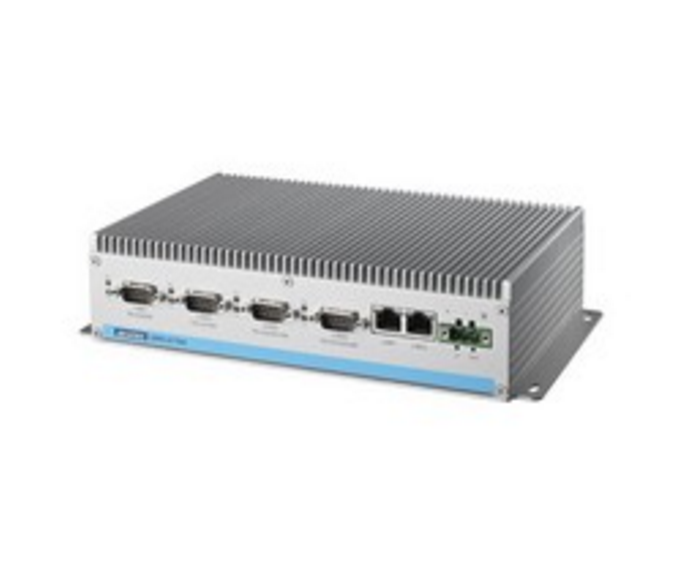

UNO-2178A-A33E

产品价格:¥
产品特点:
  1. ƒ Onboard Intel Atom N450/D510 processors ƒ 2 x 10/100/1000Base-T RJ-45 ports, 6 x USB 2.0 ports ƒ Windows® CE 6.0, WES 2009, WES 7 and Advantech Linux ready solution ƒ Onboard system status LED indicators ƒ Front-accessible CF slot ƒ Supports Boot from LAN function ƒ 2 x Mini PCIe slots with 1 x SIM slot support ƒ Fanless design with no internal cabling ƒ Isolation between chassis and power ground ƒ Supports wide operating temperatures from - 10 ~ 70°C ƒ IP40 ingress protection ƒ Windows 7 32 bit supported ƒ Supports plug-in cards (1 x PCI-104 and 1 x PC/104+) with additional daughterboard expansion ƒ Supports 8 x COM ports (UNO-2178A) ƒ Supports arbitrary baud rates
  • 产品介绍
  • 产品规格
The UNO-2174A and UNO-2178A are Embedded Automation Computers equipped with Intel Atom N450/D510 CPUs, Gigabit Ethernet ports, rich I/O, and 2 x Mini PCIe socket. They also feature WLAN, 3G expansion and compatibility with Windows 7. Both products have Energy Star certification, IP40 anti-dust ingress protection and wide operating temperatures (-10 ~ 70°C), providing high performance and high versatility with low power consumption. The UNO-2174A and UNO-2178A are economic new computing platforms for manufacturing executing systems, facility automation, and industrial thin client applications. With an additional daughterboard, the UNO-2174A and UNO-2178A support 1 x PC/104+ and 1 x PCI-104 plug-in cards for further expansion
订货信息:ƒ UNO-2174A-A23E Intel Atom N450 1.6 GHz, 2 GB RAM, 4 x COM ports Automation Computer ƒ UNO-2178A-A33E Intel Atom D510 1.66 GHz, 2 GB RAM, 8 x COM ports Automation Computer ƒ UNO-2174A-A33E Intel Atom D510 1.66 GHz, 2GB RAM, 4 x COM ports Automation Computer
