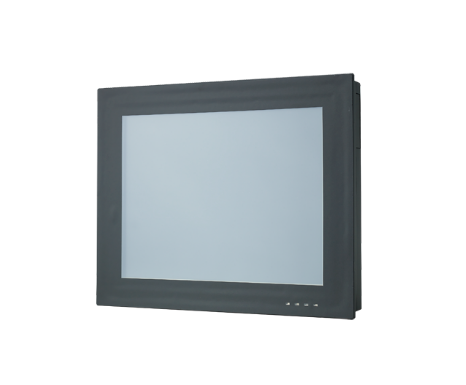

The PPC-3150 is a 15” fanless panel PC that doesn’t only deliver high performance with an Intel quad-core Atom processor but also supports a wide operating temp. (-20~60°C) and wide range of power input (9-32Vdc). It consolidates performance and reliability in one system. With multiple I/Os such as 4 x COM, 1 x USB3.0, 1x isolated RS-422/485 and dual Intel Gigabit Ethernet make it easier to connect to devices and be integrated into machine building industry. The PCI/PCIe expansion is allowed to add on field bus or proprietary card makes more application possibility.
订货信息：Part No. Description
PPC-3150-RE4AE Intel Atom E3845 (1.91G) Panel PC with 15" XGA panel,
5-wire resistive T/S, w/o memory
PPC-WLAN-A1E WiFi Module with Antenna Cable 40cm for PPC
PPC-174T-WL-MTE Wall mount kit for PPC series
PPC-ARM-A03 PPC ARM VESA Standard
PPC-3150-COME Module to install either two additional RS-232 port or one
additional RS-232 and one GPIO for PPC-3150/PPC-3170
96PSA-A90W19OT-1 ADP A/D 100-240V 90W 19V W/PFC
1700001524 Power cord 3P UL 10A 125V 1.8M
170203183C Power cord 3P Europe (WS-010+083) 183cm
1700008921 Power cord 3P/3P 1.8M PSE
2070013015 Image WES7P 32-bit Multi V4.12 for PPC-3150/3170
2070013321 Image WES7P 64-bit Multi V4.12 for PPC-3150/3170
98R3612000E Msata/CFast to USB card reader
98R3415010E 98 Level For 9663415010E Front USB Cable 100cm
PPC-STAND-A1E Stand For PPC Series (single acting hinge)
98R3C31500E PPC-315/317/319 internal USB dongle kits
98R3C31510E PPC-3150/3170 install CF card kits
98R3C31520E PPC-3150/PPC-3170 CFast card kits
