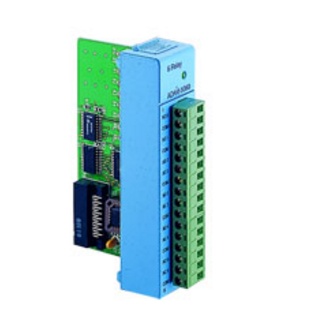

ADAM-5060-AE

产品价格：￥

产品特点：

Contact rating: AC: 125 V @ 0.6 A; 250 V @ 0.3 A
Breakdown voltage: 500 VAC (50/60 Hz)
Relay on time (typical): 3 msec.
Relay off time (typical): 1 msec.
Total switching time: 10 msec.
Insulation resistance: 1000 MW minimum at 500 VDC
Channels:2 x form A , 4 x form C

产品介绍
产品规格

General Certification CE Connectors 1 x Plug-in screw terminal (# 14 ~ 22 AWG) Enclosure ABS+PC Power Consumption 1.8 W (max.) Relay Output Breakdown Voltage 500 VAC (50/60 Hz) Channels 2 x form A , 4 x form C Contact Rating AC: 125 V @ 0.6 A 250 V @ 0.3 A DC: 30 V @ 2 A 110 V @ 0.6 A Insulation Resistance 1 GΩ min. @ 500 VDC Relay Off Time 2 ms (typical) Relay On Time 3 ms (typical) Total Switching Time 10 ms

订货信息：ADAM-5060 6-ch Relay Output Module
