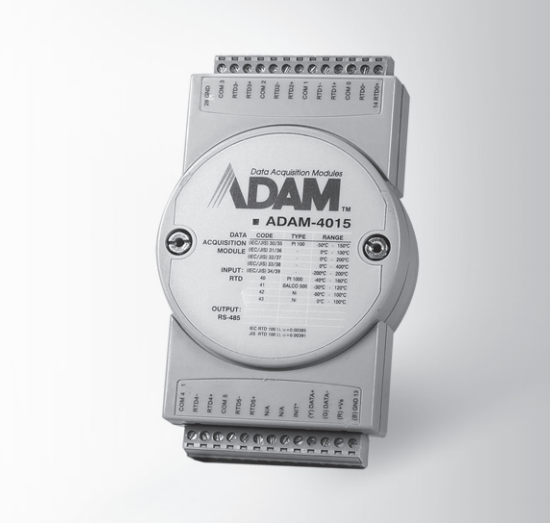

ADAM-4015-CE

Specifications General ƒ Connectors 2 x plug-in terminal blocks (#14 ~ 28 AWG) ƒ Power Consumption 1.2 W @ 24 VDC ƒ Watchdog Timer System (1.6 s) & Communication ƒ Supported Protocols ASCII command and Modbus/RTU ƒ Burn-out Detection Yes Analog Input ƒ Channels 6 differential ƒ Input Connections 2, 3-wire ƒ Input Impedance 10 MΩ ƒ Input Type Pt, Balco and Ni RTD ƒ RTD Types and Temperature Ranges Pt 100 RTD: Pt -50°C to 150°C Pt 0°C to 100°C Pt 0°C to 200°C Pt 0°C to 400°C Pt -200°C to 200°C IEC RTD 100 ohms (a = 0.00385) JIS RTD 100 ohms (a = 0.00392) Pt 1000 RTD Pt -40°C to 160°C Balco 500 RTD -30°C to 120°C Ni 50 RTD Ni -80°C to 100°C Ni 508 RTD Ni 0°C to 100°C BA1 -200°C to 600°C ƒ Accuracy ±0.1% (Typical) ƒ CMR @ 50/60 Hz 120 dB ƒ Span Drift ± 25 ppm/°C ƒ Zero Drift ± 3 µV/°C

订货信息：ADAM-4015-CE 6通道符合Modbus协议的热电阻模块
